*Some images show our separately available A35 intake system
Compatibility: Mercedes A35 AMG, CLA35 AMG, GLA35, A250, CLA250

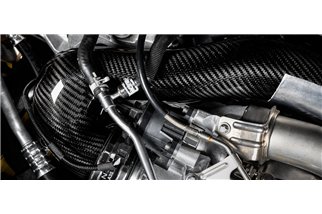

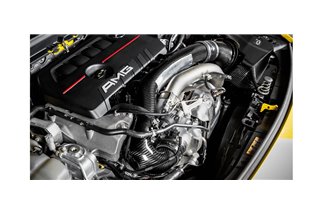

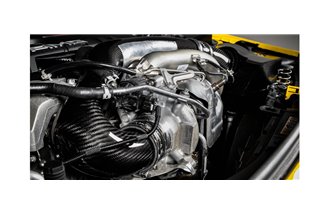

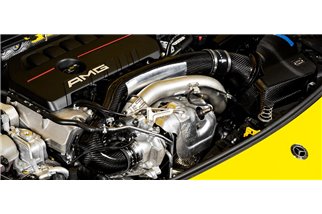

The Mercedes A35 Eventuri Turbo Tube was developed to provide the turbo with a less restrictive flow path than the stock tube. We were able to increase the internal volume and remove the ribbed flexible section on the side of the airbox.
*Some images show our separately available A35 intake system
Compatibility: Mercedes A35 AMG, CLA35 AMG, GLA35, A250, CLA250
The Mercedes A35 Eventuri Turbo Tube was developed to provide the turbo with a less restrictive flow path than the stock tube. We were able to increase the internal volume and remove the ribbed flexible section on the side of the airbox.

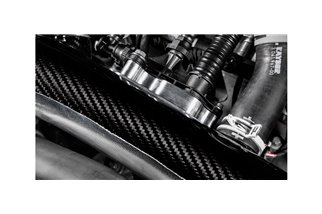

By using a completely solid pipe from the intake to the turbo, the flow path is smoother and therefore the airflow can remain more laminar. To account for the movement of the engine, our A35 intake has a 'floating' pipe, which can move within the airbox. The shape of the carbon pipe at the end of the turbo has been optimised using CFD to minimise turbulence. The connection to the turbo is achieved with an innovative silicone joint which features an internal heat separator between the carbon pipe and the metal turbo housing. The multiple vent connectors at the rear of the pipe are taken care of with a CNC machined block which also provides a smooth internal surface for airflow within the pipe.

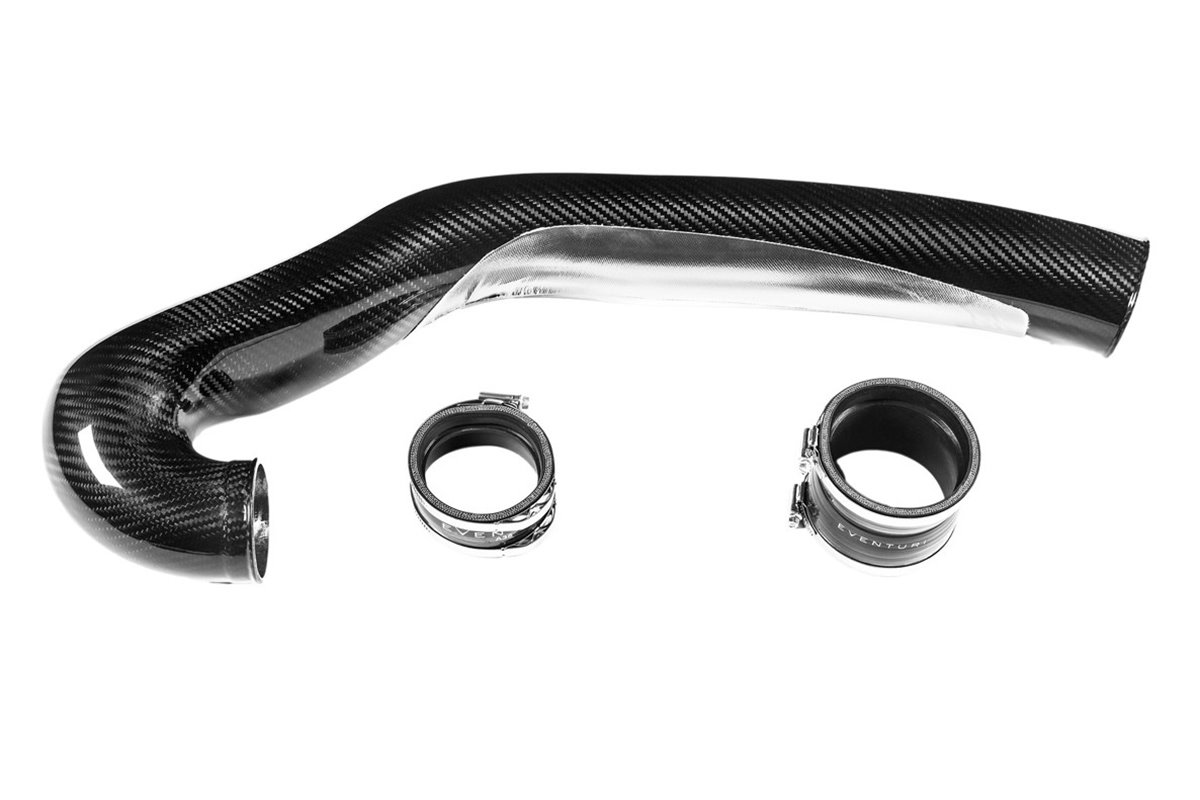

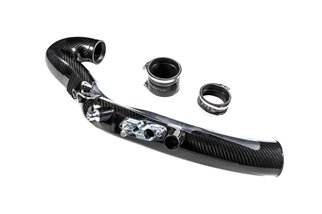

The Eventuri A35-A250 turbo inlet pipe is manufactured from pre-preg carbon fibre and comes with a host of other components designed to perform a specific purpose and manufactured to the highest standards.
The fitting is available for the A35, CLA35 and A250. The inlet pipe is designed to fit our intake system only.
Here are the details for each component and the design ethos behind them:
Each inlet system consists of:
